Arteche is a global company, an international benchmark with companies in Europe, America, Asia and Oceania, and a service that has more than 80 technical-commercial offices, which allows us to directly see the international and local contexts of the electric power industry.
ARTECHE is a benchmark for the electric power industry with a full range of instrument transformers, auxiliary relays, protective, metering and control equipment, solutions in substation automation, energy quality and solutions for smart grids.
Arteche

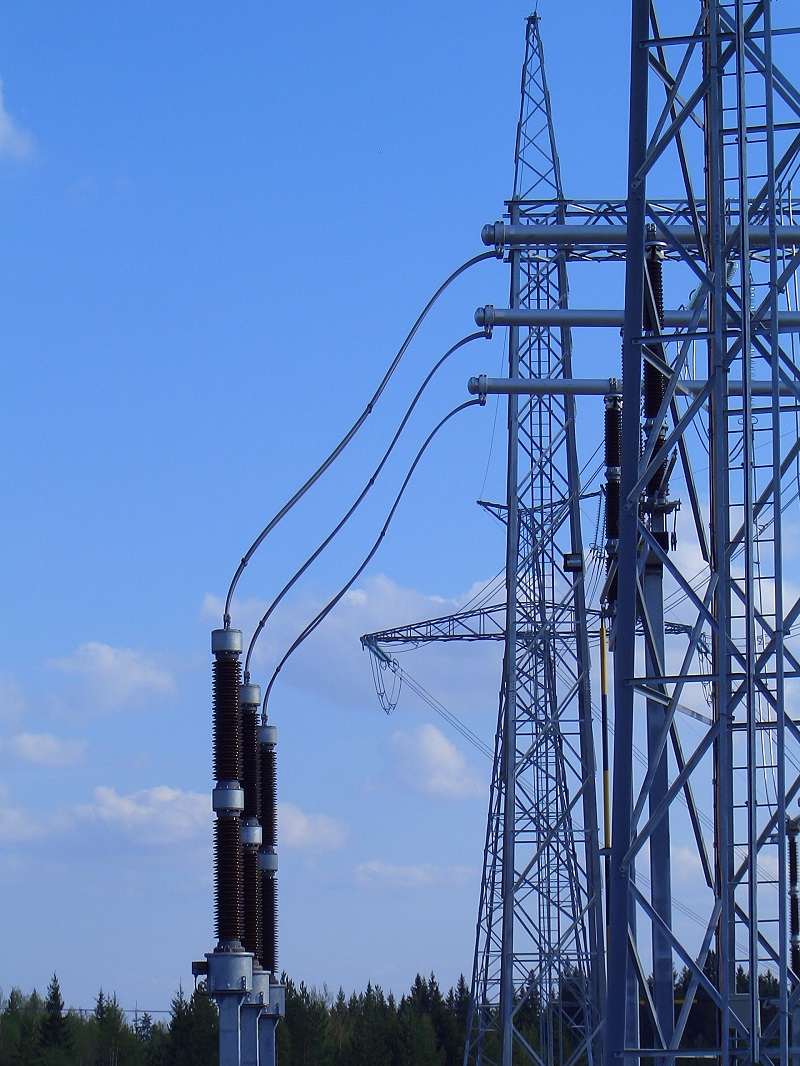

High Voltage Capacitive Transformers and Coupling Capacitors
Capacitive voltage transformers isolate the measuring instruments, meters, relays, protections, etc., from the high voltage power circuit and provide a scaled replica of the voltage in the HV line.
They enable transmission of high frequency signals through the high voltage (HV) lines.
Coupling capacitors are only used for coupling high frequency communication signals, making them equivalent to the capacitive part of a Capacitive Voltage Transformer.
- Voltage input to different types of protection relays.
- Ideal for installation at metering points dueto its very high accuracy class and extremely steady capacitance.
- Transmission of high-frequency signals through the high voltage lines (PLC).
- Helps to reduce voltage peaks in the line.
- Harmonic measurement in conjunction with PQSensor®.
Arteche

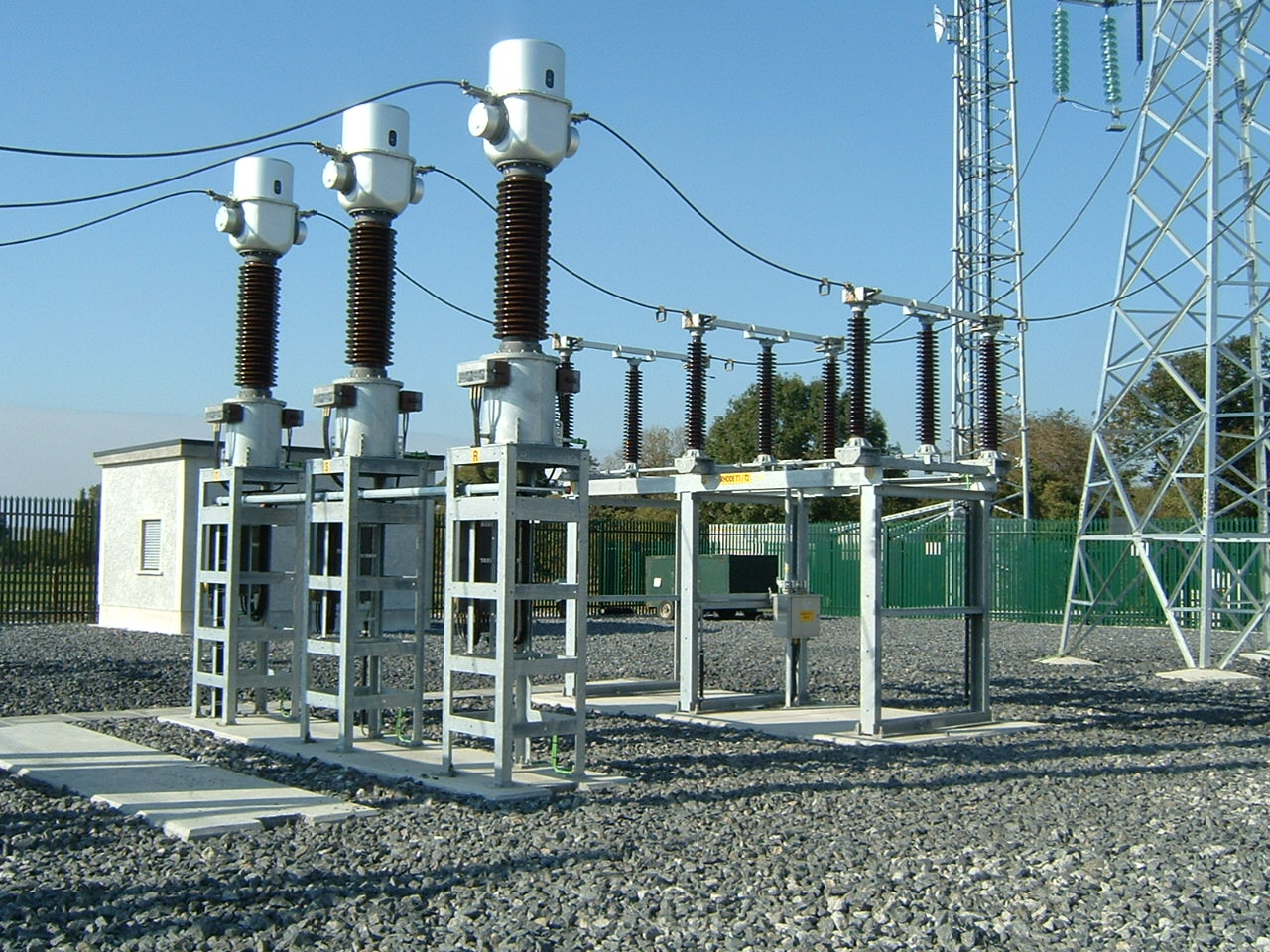

High Voltage Combined Transformers
Combined instrument transformers contain a current transformer and an inductive voltage transformer within the same body.
Thus they are used in the same applications as their respective independent transformers; they separate meters, counters, relays, etc., from the high voltage circuit, and provide a scaled replica of the current and voltage in the HV line.
Combined transformers are suitable for use in substations where space or installation costs make using independent Transformers difficult.
- Ideal for installation at metering points due to their very high accuracy class, both in current and voltage.
- Suitable for the discharge of high-voltage lines and capacitor banks.
- Excellent frequency response; ideal for monitoring power quality and measuring harmonics.
Arteche

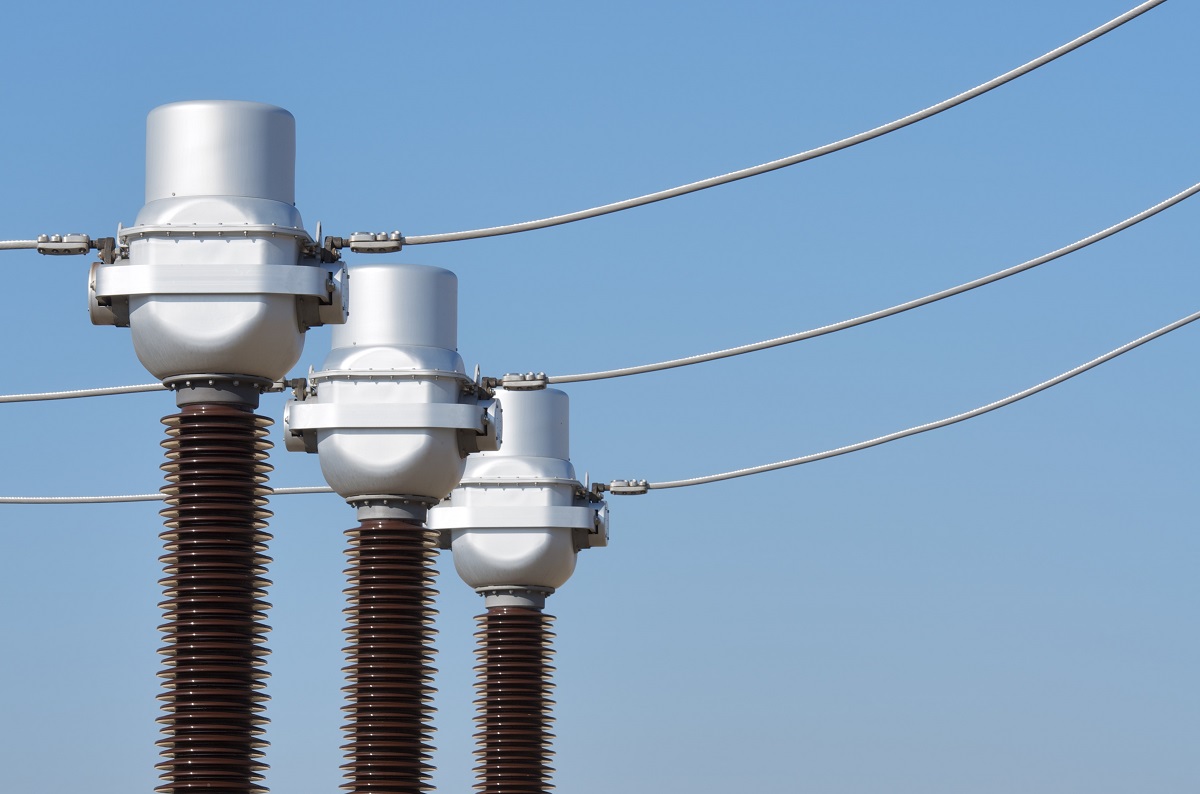

High Voltage Current Transformers
Current transformers are designed to provide a scaled down replica of the current in the HV line and isolate the measuring instruments, meters, relays, etc., from the high voltage power circuit.
Some of their characteristics:
- Current input to different types of protection relays.
- Ideal for installation at metering points due to its very high accuracy.
- Excellent frequency response; applicable for monitoring power quality and measuring harmonics.
- Suitable for installation in AC filters in converter substations for HVDC projects.
Arteche

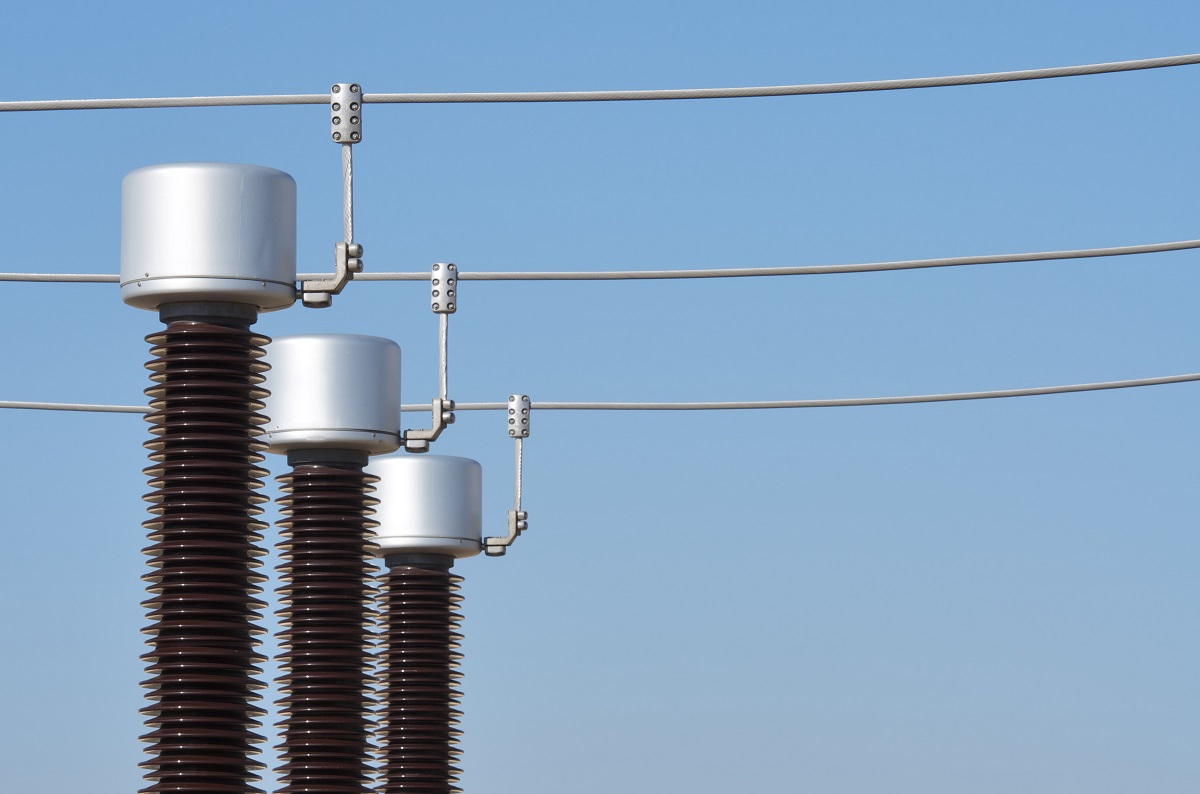

High Voltage Inductive Voltage Transformers
Inductive voltage transformers are designed to provide a scaled down replica of the voltage in the HV line and isolate the measuring instruments, meters, relays, etc., from the high voltage power circuit.
Some of it's characteristics:
- Voltage input to different types of protection relays.
- Ideal for installation at metering points due to its very high accuracy class.
- Suitable for the discharge of high-voltage lines and capacitor banks.
Arteche

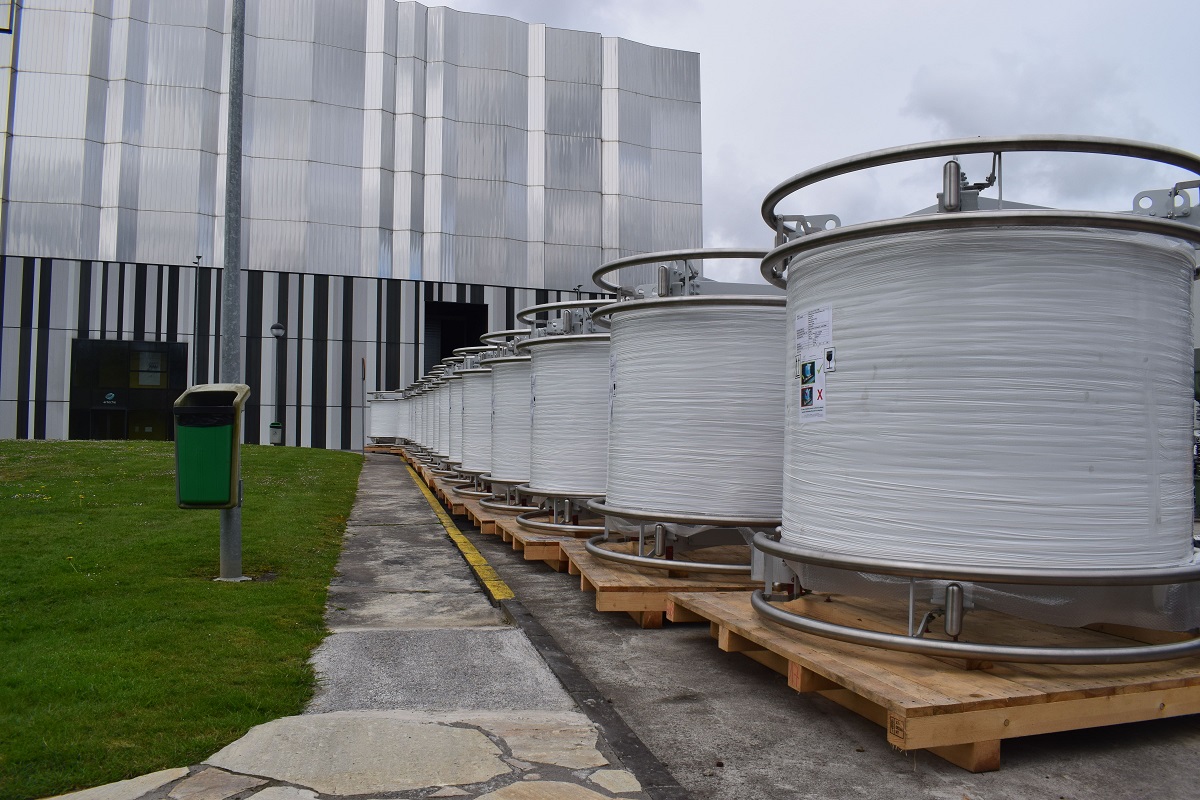

Line Traps
Line Traps are used in power line communications to prevent undue loss of carrier signal power and to minimize interference from carrier signaling systems on adjacent transmission lines.
They present high impedance at the carrier frequency band (40 to 500 kHz) thus preventing signal power loss. In addition, the impedance at the power frequency (50 or 60 Hz) is negligible, in order to avoid interfering with the power transmission.
Arteche

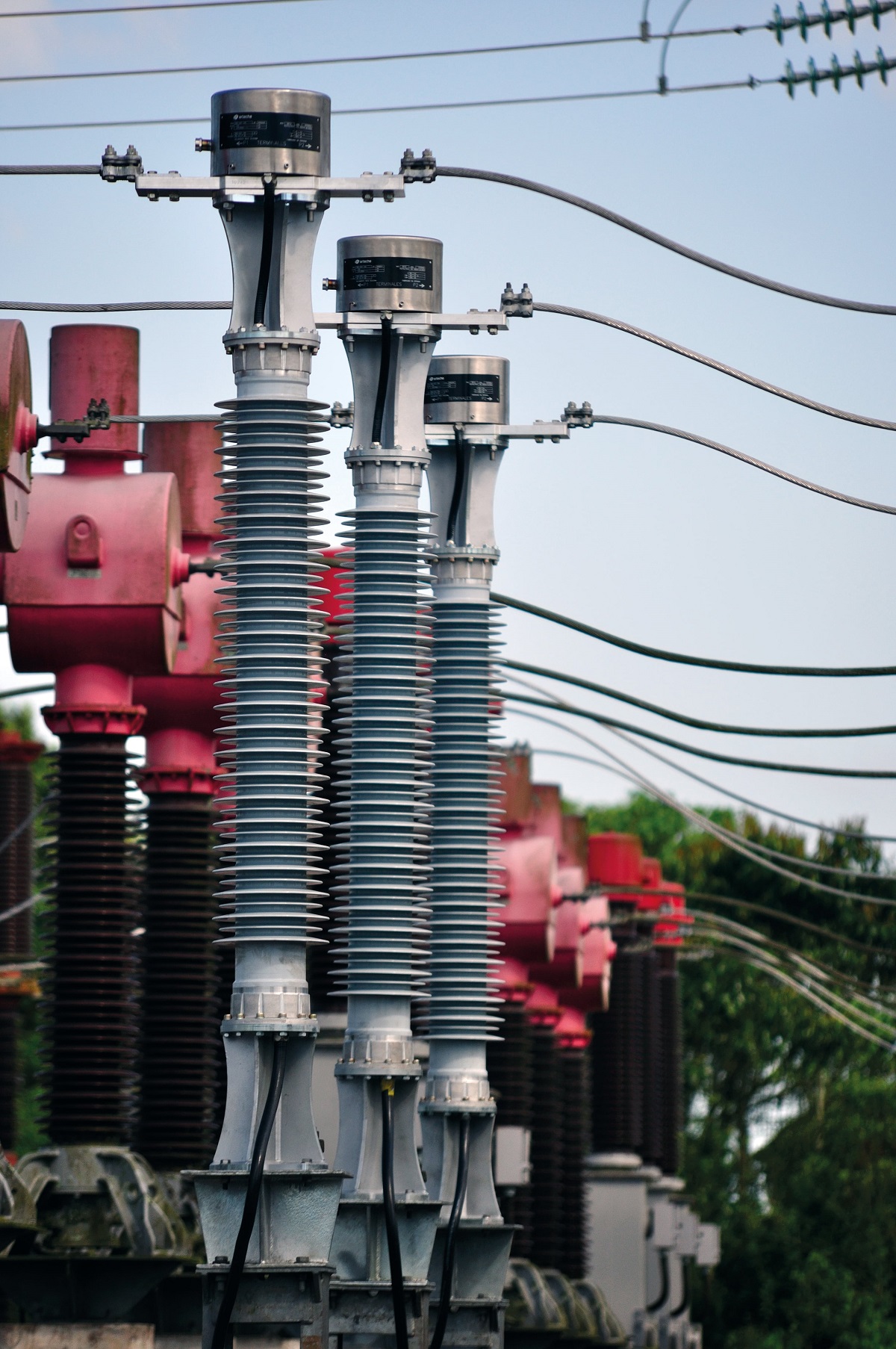

Optical Current Transformer SDO-OCT
ARTECHE’s SDO-OCT is a passive, modular optical current transformer that can be used for any voltage level. The device is based on three elements: an optical current transducer (SDO-ICT), the insulator and the merging unit (SDO MU).
SDO-ICT is a fully passive optical transducer that provides a digital measurement solution for metering and protection applications. The passive interferometric transducer can offer Cl 0.2 accuracy over an unlimited range of primary currents.
The SDO-ICT transducer can be mounted with different types of post-insulator that cover any insulation level that might be required. The post-type insulator uses solid insulation. There is no risk of violent failure modes and it is environmentally friendly.
Maintenance: There is no risk of insulator leakage (no oil or gas is used) and no maintenance is required.
The SDO-ICT can also be used for DC measurement.
Arteche

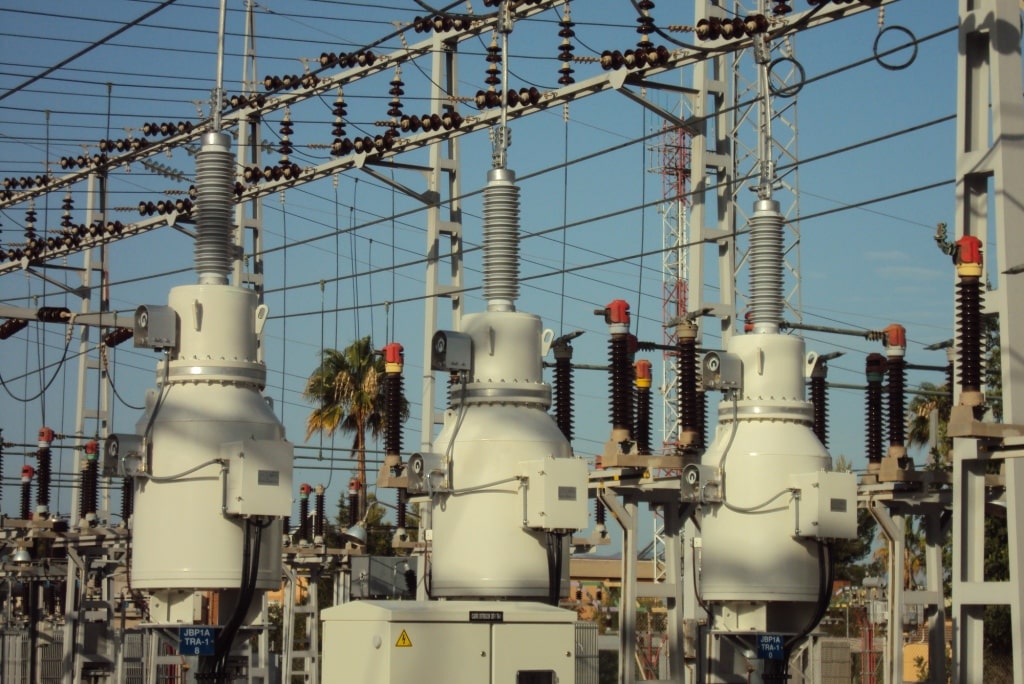

Power Voltage Transformers
Power Voltage Transformers also known as Substation Service Voltage Transformers (SSVT) are used to supply Low Voltage power directly from a High Voltage line up to 550 kVThey offer all the benefits of a potential transformer with the applications of a distribution transformer.
Power Voltage Transformers (SSVT) are developed in both oil and SF6 insulation.
Their main application is the power supply of different type of subtations (switching, renewable and conventionals). They also assure the rural electrification, power supply of telecommunication towers in remote areas and temporary power supply when its needed.
The main advantages of Power Voltage Transformers (SSVT) are:
- Robust design.
- Cost effective.
- Maintenance-free.
- Reliable power supply.
- Design flexibility.
- High seismic performance.
- Reduced environmental impact.
Arteche
Trip, supervision and auxiliary relays
With more than 60 years’ experience manufacturing high quality electromechanical relays (EM relays), ARTECHE is a worldwide reference for critical and safety applications. Our offering includes a complete range of auxiliary, trip, lockout and contactor relays specially designed for the most demanding environments. Millions of Arteche power relays are in service worldwide.
Arteche plug in power relays are designed to provide high breaking capacity, high dielectric strength (galvanic isolation), high speed operating time and are able to withstand vibrations and seismic conditions. With a wide range of voltages, options and accessories, Arteche relays perfect fit each application requirement, guaranteeing a reliable performance during a long product lifecycle, also under severe environmental conditions.
Arteche
Railway relays
Arteche´s expertise of more than 55 years manufacturing electromechanical relays technology gives the client the assurance of a technological leader. Our dedicated range of railway relays are designed to meet and exceed several railway industry standards in aspects such as vibrations (EN-61373) and fire behavior (EN-45545-2), among other railway industry focused features.
Arteche relays have extremely high MTTF values. Its reliability and durability allow them to be used not only as a general purpose relay, but also in all kind of safety functions, both in on-board and in signaling applications, making them suitable to be used in circuits requiring up to SIL-4 safety integrity level.
Designed following EN-50205 (Weld No Transfer Contacts) and with an optimal contact circuit design, Arteche relays guarantee a long-life performance in all your switching operations, both with digital signals and in applications where a high degree of resistance to welding is required.
